The Engine's “Pressure Regulator”: How the Expansion Tank and Radiator Cap Work Together.
2025-09-28
In a car engine's cooling system, two seemingly simple yet crucial components work in harmony—the expansion tank (also known as the coolant reservoir or overflow tank) and the radiator cap. Together, they regulate pressure in the cooling system, ensuring the engine operates within an optimal temperature range. This elegantly designed system is key to efficient heat dissipation and reliable vehicle performance.
Why Does the Cooling System Need “Pressure Regulation”?
As the engine runs, coolant circulates and absorbs heat, causing its temperature to rise. If the system were completely sealed, the expanding fluid would cause a dangerous pressure buildup, potentially leading to ruptured hoses or a cracked radiator. Conversely, when the coolant cools down and contracts, a vacuum could form, allowing air to enter or even causing components to collapse. Thus, pressure regulation is essential to maintain system stability.
The Radiator Cap: An Active Pressure Control Valve.
The radiator cap may look simple, but it’s actually a precision pressure-regulating valve. It typically contains two valves:
1. Pressure Valve (Overflow Valve):
When the coolant expands due to heat and system pressure exceeds a set value (e.g., 0.9–1.1 bar), this valve opens. It allows excess coolant and steam to flow through the overflow tube into the expansion tank, relieving pressure and preventing damage.
2. Vacuum Valve (Return Valve):
When the engine is turned off and the coolant cools and contracts, a vacuum forms inside the system. This valve then opens, drawing coolant back from the expansion tank into the radiator to prevent the radiator or hoses from collapsing under atmospheric pressure.

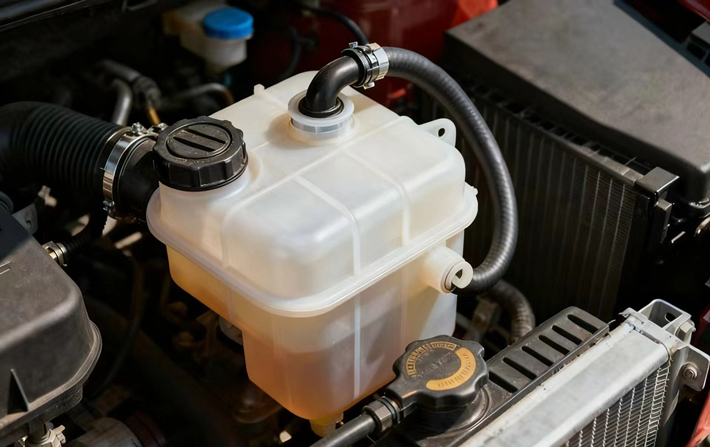

The Expansion Tank: A Passive Buffer and Storage Container.
The expansion tank is a plastic container connected to the radiator cap via a hose. Its functions include:
Storing Excess Coolant: It holds coolant overflow from the radiator when pressure is high.
Replenishing Coolant: It supplies coolant back to the radiator when the system cools down and contracts.
Separating Air and Coolant: Its design helps air bubbles escape, reducing the risk of airlocks and improving cooling efficiency.
Providing a Visual Gauge: Markings like “Min” and “Max” indicate the proper coolant level range.
How They Work Together: A Dynamic Balance of Pressure
1. When the Engine Heats Up (Pressure Rises):
Coolant expands as its temperature increases, raising the pressure in the system. Once pressure exceeds the radiator cap’s rating, the pressure valve opens, allowing excess coolant to enter the expansion tank.
2. When the Engine Cools Down (Pressure Drops):
After the engine is shut off, the coolant cools and contracts, creating a vacuum. The radiator cap’s vacuum valve opens, drawing stored coolant from the expansion tank back into the radiator.
3. During Normal Operation:
Pressure remains within the designed range, and the coolant level in the expansion tank stays dynamically balanced.
Common Issues & Tips
Never open the radiator cap when the engine is hot: High-temperature coolant under pressure may spray out and cause burns.
Check the expansion tank coolant level regularly: It should be between the “Min” and “Max” marks. A level that’s too low may allow air into the system; too high may indicate a problem.
Use the correct radiator cap: Always replace with a cap rated for the specific vehicle model. Wrong pressure ratings can unbalance the system.
Frequent coolant loss or overheating: May indicate a faulty radiator cap or a leak—have the system inspected promptly.
Summary
The expansion tank and radiator cap work together like the cooling system's “lungs”—breathing in and out to maintain pressure balance. This simple yet effective design not only protects the engine from temperature extremes but also enhances overall reliability. Understanding how these components function can help you better maintain your vehicle and ensure safer, more dependable driving.
