How the Automotive Fan Clutch Contributes to Efficient Engine Operation.

2025-10-16

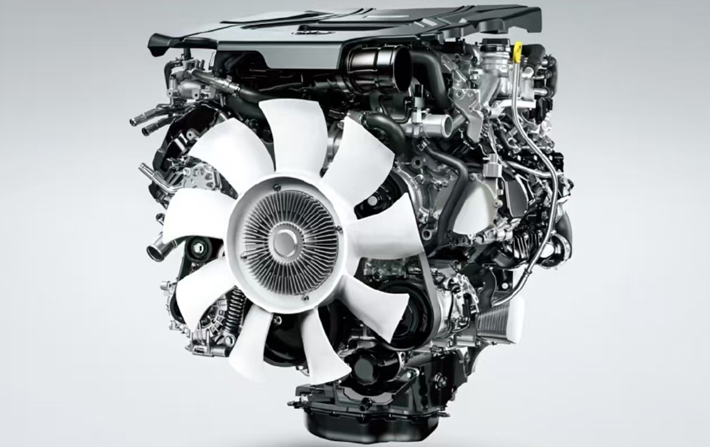

Within a vehicle's cooling system, the fan clutch is a critical yet often overlooked component. It serves not only as the drive unit for the radiator fan but also as a key device for regulating engine operating temperature and ensuring operational efficiency. This article systematically explains the working principle of the fan clutch and its importance in enhancing engine performance.




Functional Role of the Fan Clutch.

The optimal operating temperature range for an engine is between 85°C and 105°C. Maintaining this temperature relies on the efficient operation of the cooling system, where the radiator is responsible for dissipating heat, and the radiator fan provides the necessary airflow.


If the fan were rigidly connected to the engine and ran continuously at high speed, it would cause three main issues:

1. Power Loss: Driving the fan consumes a portion of the engine's power, leading to reduced performance and decreased fuel economy.

2. Operational Noise: A high-speed fan generates significant aerodynamic noise.

3. Slow Warm-up: During a cold start, excessive cooling delays the engine from reaching its optimal operating temperature, increasing wear.

The core function of the fan clutch is to act as an automatic temperature-control device, intelligently adjusting the fan speed based on the engine's actual cooling needs, thereby resolving these issues.


Working Mechanism of the Fan Clutch.

Modern vehicles commonly use a silicone fluid-type fan clutch. Its operational state is primarily controlled by temperature, as detailed below:

  • Disengaged Mode at Low Temperatures:

When the engine is cool, the airflow directed towards the fan clutch is also at a low temperature. In this state, the bimetallic thermal sensor on the clutch's front remains in its original position, keeping an internal valve closed. The silicone fluid remains stored in the reservoir chamber. As the fluid does not enter the working chamber between the driving and driven plates, power transmission is interrupted. Consequently, the fan either freewheels or rotates at a very low speed, achieving energy savings and noise reduction while aiding the engine in warming up quickly.

  • Engaged Mode at High Temperatures:

When engine load increases and coolant temperature rises (e.g., during low-speed hill climbing, idling, or in high ambient temperatures), the hot airflow causes the bimetallic thermal sensor to heat up and deform, actuating the valve to open. The silicone fluid, under centrifugal force, rapidly flows into the working chamber. Using its high viscosity, it couples the engine's power to the fan. At this point, the fan enters a state of efficient drive, with its speed increasing significantly to provide powerful cooling airflow for the radiator and condenser, ensuring the engine temperature returns to the normal range.


Typical Symptoms and Impacts of Fan Clutch Failure.

If the fan clutch fails, its intelligent regulation function is lost, typically manifesting in one of two extreme states:

  • Failure Mode 1: Failure to Engage

This is a serious failure. The fan never achieves high speed, leading to insufficient cooling under high load conditions and easily causing engine overheating. In severe cases, this can damage the head gasket or even lead to engine seizure, resulting in high repair costs.

  • Failure Mode 2: Constant Engagement

The fan runs continuously at high speed. While this avoids overheating risk, it brings persistent negative effects:

 1. Engine power is wasted, leading to significantly reduced fuel economy.

 2. Sluggish acceleration response.

 3. Presence of pronounced wind noise from the engine compartment continuously.

Preliminary Check: After the engine has completely cooled down (ensuring safety), try to rotate the fan blades by hand. If there is excessive resistance and they are difficult to turn, it may indicate a seized or stuck fan clutch.


Summary

As the intelligent control center of the engine cooling system, the operational effectiveness of the fan clutch directly impacts the engine's power, fuel economy, and reliability. Regularly monitoring its condition is an important aspect of vehicle preventive maintenance
