Car Air Conditioning Compressor: How Does the
2025-09-19
On a hot summer day, a car’s air conditioning system provides a cool and comfortable driving environment. Behind the scenes, a key component is at work—the air conditioning compressor. Known as the "heart" of the car’s cooling system, it drives the circulation of refrigerant and enables the transfer of heat. So how exactly does this "heart" work?
I. The Role of the Compressor: Power Source of the Cooling System
The car air conditioning system is a closed-loop cycle consisting of four core components: the compressor, condenser, expansion valve, and evaporator. The compressor functions much like the human heart—it pressurizes the refrigerant and pushes it through the system, continuously absorbing heat from the cabin and releasing it outside.
Without the compressor, the refrigerant cannot circulate, and the air conditioning system cannot cool. Therefore, the compressor is essential for the proper operation of the AC system.
II. How the Compressor Works: Compression, Circulation, and Heat Absorption
The compressor’s operation can be broken down into three simple steps:
1. Intake of Low-Temperature Low-Pressure Gas
The compressor draws in low-temperature, low-pressure gaseous refrigerant from the evaporator via the intake port. At this stage, the refrigerant has already absorbed heat from the cabin but remains at a relatively low temperature.
2. Compression to Increase Pressure and Temperature
The compressor uses mechanical components such as pistons, rotary blades, or scrolls to compress the incoming gas, significantly raising its pressure and temperature. This process is similar to how a bicycle pump heats up when pumping air—compressing gas increases its temperature.
3. Discharge of High-Temperature High-Pressure Gas
The compressed high-temperature, high-pressure gaseous refrigerant is sent to the condenser. There, with the help of the cooling fan, it releases heat and gradually condenses into a high-pressure liquid.
Through this process, the compressor pressurizes and transports the refrigerant, providing the driving force for the subsequent condensation, expansion, and evaporation stages.
III. Common Types of Compressors
Depending on their structure and operating principles, car AC compressors can be divided into the following main types:

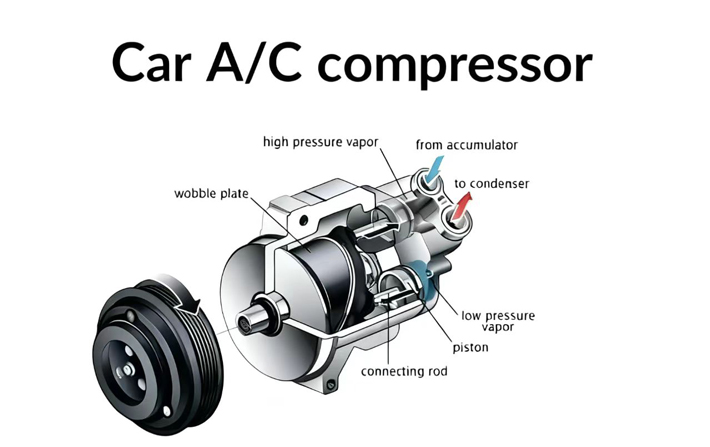

1. Piston Compressors
Use pistons moving within cylinders to compress the gas. They are simple in design, cost-effective, and widely used in economy vehicles.
2. Rotary Vane Compressors
Utilize rotating blades to compress the gas. They are compact, operate quietly, and are suitable for small and mid-sized cars.
3. Scroll Compressors
Employ two interlocking scrolls to compress the gas. They are highly efficient, produce less vibration, and are commonly found in mid-to-high-end vehicles.
4. Electric Compressors
Primarily used in electric and hybrid vehicles. Driven directly by an electric motor, they can operate even when the engine is off, making them ideal for modern energy-efficient vehicles.
IV. Power Source of the Compressor
In traditional internal combustion engine vehicles, the compressor is typically belt-driven and connected to the engine’s crankshaft. As a result, turning on the AC may slightly increase the engine’s load, leading to a minor rise in fuel consumption.
Electric compressors, on the other hand, are entirely powered by electricity and are not dependent on the engine. This makes them better suited for hybrid and electric vehicles.
V. Daily Use and Maintenance Tips
To ensure the compressor operates reliably over the long term, keep the following points in mind:
Check Refrigerant Levels Regularly: Insufficient refrigerant can increase the compressor’s workload and lead to damage.
Listen for Unusual Noises: If the compressor makes abnormal sounds while operating, it may indicate a mechanical issue that requires prompt inspection.
Gradual Use After Long Periods of Inactivity: If the AC hasn’t been used for an extended period, start it at a low fan speed to allow the compressor to ease into operation.
Replace the Cabin Air Filter Periodically: Maintaining clear airflow reduces strain on the system.
Summary
Though small in size, the car air conditioning compressor serves as the "heart" of the entire cooling system. By compressing and circulating the refrigerant, it enables heat transfer and ensures a comfortable driving experience. Understanding how it works and how to maintain it can extend the compressor’s lifespan and keep your AC system running efficiently.
