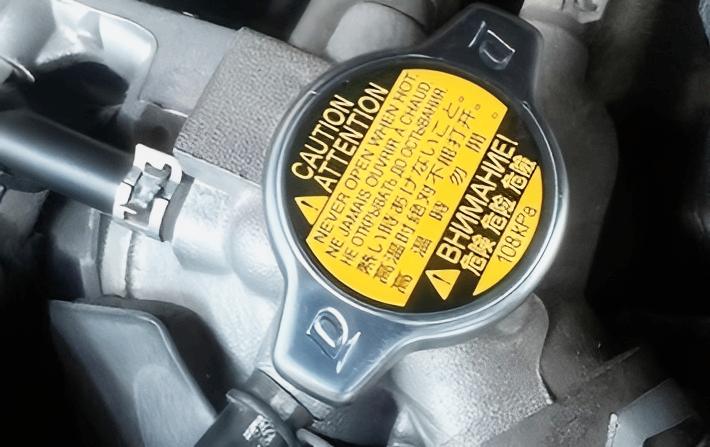

Although small and seemingly simple, the radiator cap plays a vital role in a vehicle's cooling system. It not only seals the cooling system but also utilizes dual mechanisms—the pressure valve and vacuum valve—to maintain system stability, improve efficiency, and prevent failures. This article provides an in-depth analysis of how the radiator cap works and reveals how its scientifically engineered design ensures the safe operation of the engine.

Basic Function and Design of the Radiator Cap.

The primary function of the radiator cap is to seal the cooling system, ensuring that coolant circulates under rated pressure. Its core design includes two valves:

• Pressure Valve (Positive Pressure Valve): Usually located on the top of the cap, its opening pressure is controlled by spring preload.


• Vacuum Valve (Negative Pressure Valve): Positioned below, it responds to negative pressure conditions when the coolant contracts.


This dual-valve structure makes the radiator cap an “intelligent guardian” of the cooling system, dynamically regulating internal pressure.

Role of the Pressure Valve—Preventing Overheating and Bursting.

When the engine is running, the temperature of the coolant rises (can exceed 90°C), causing it to expand and increase pressure. The pressure valve serves the following purposes:

 1. Maintaining a High-Pressure Environment: It remains sealed within the rated pressure (typically 0.9-1.1 bar), raising the boiling point of the coolant (e.g., up to 120°C under 1.1 bar pressure) to prevent coolant loss and engine overheating due to boiling.

 2. Safe Pressure Release: If pressure exceeds the set value (e.g., due to abnormal temperature rise from a malfunction), the pressure valve opens, diverting excess coolant to the overflow tank to prevent the radiator or hoses from bursting.

Role of the Vacuum Valve—Preventing Collapse and Ensuring Circulation.

After the engine is shut off, the coolant temperature drops, causing it to contract and potentially create negative pressure in the system. The vacuum valve serves the following functions:

 1. Balancing Internal and External Pressure: When pressure falls below atmospheric pressure, the vacuum valve opens, drawing coolant from the overflow tank or allowing air in to prevent the radiator hoses from being crushed by external atmospheric pressure (known as "vacuum collapse").

 2. Ensuring Coolant Return: By replenishing coolant after contraction, it ensures the system remains filled, enabling efficient heat exchange during the next startup.

Practical Application and Maintenance Recommendations.

The rated pressure of the radiator cap must match the vehicle model (common specifications are 0.9 bar, 1.1 bar, etc.). Using an incorrect cap may reduce cooling efficiency or cause component damage. Daily maintenance should include:

1. Regularly inspecting the seal for aging and ensuring the valves are not stuck.

2. Choosing genuine or equivalent specification parts when replacing; avoid using low-quality caps that may cause abnormal pressure.

3. Monitoring coolant level fluctuations in the overflow tank—frequent changes may indicate a faulty radiator cap.

Summary

The radiator cap, through the synergy of its pressure and vacuum valves, prevents system overheating and bursting while avoiding collapse due to coolant contraction. This dual role not only enhances cooling efficiency but also directly ensures the long-term stable operation of the engine. Neglecting its importance may lead to cascading failures, making regular inspection and compliant replacement essential.
