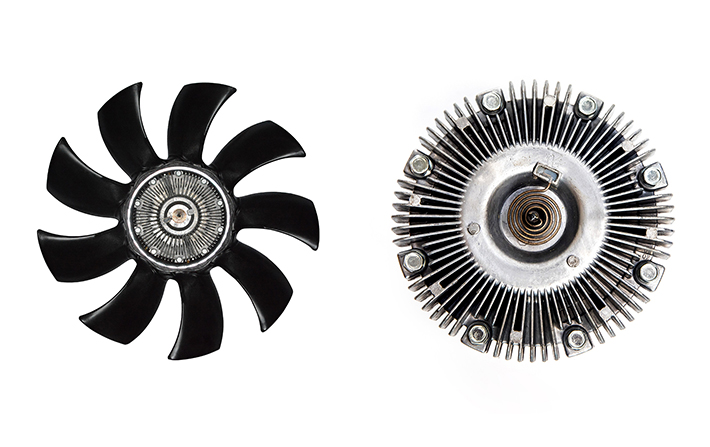

The silicone fluid clutch is a core component of automotive cooling systems, automatically adjusting fan speed based on engine temperature to balance cooling efficiency and energy consumption. This article analyzes its working principles through structural design, control logic, and typical scenarios.

I. Structural Components & Temperature-Responsive Design

Key components of automotive silicone fluid clutches include:

1. Drive Plate & Driven Plate: The drive plate connects to the engine crankshaft, while the driven plate drives the fan. Torque is transmitted via silicone fluid's viscous shear force.

2. Working Chamber & Reservoir: The working chamber contains high-viscosity silicone fluid (5,000–15,000 cSt), with flow regulated by a valve from the reservoir.

3. Bimetallic Temperature Sensor: Mounted near the radiator, temperature changes drive valve opening/closing.

Automotive-Optimized Features:

• Bimetallic strip directly contacts high-temperature radiator zones to minimize response delay.

• Multi-layer fluororubber seals prevent silicone fluid leakage.

II. Temperature Control Logic

1. Cold Start (Temperature < 65°C)

Valve closed; silicone fluid stays in reservoir. Fan idles at low speed (~30% of engine RPM), reducing cold-engine wear.

2. Warm-Up Phase (65–90°C)

Bimetallic strip bends to open valve. Silicone fluid flows into the working chamber, increasing viscous shear force. Fan speed rises with temperature.

3. High-Temperature Protection (>90°C)

Valve fully opens; chamber fills with fluid. Fan operates at full speed (80–90% engine RPM) for forced cooling.

4. Cool-Down Phase

Valve closes as temperature drops. Fluid returns to reservoir, restoring low-speed fan operation.

III. Critical Parameters & Optimization

Fluid Viscosity: Higher viscosity improves low-temperature torque but requires balanced high-temperature flow (typical range: 5,000–15,000 cSt).

Bimetallic Response: Activation at 65–75°C, full opening at 85–95°C, calibrated to engine cooling demands.

Pressure Relief Port: 0.5–1mm restrictor hole prevents clutch lockup under low-temperature high-viscosity conditions.

Performance Enhancements

1. Replace bimetallic strips with shape memory alloys (SMA), cutting response time from 20s to <5s.

2. Add heat-resistant nanoparticles to extend fluid lifespan.

3. Optimize valve opening curves to reduce fuel consumption by 3–5%.

IV. Common Failures & Repairs

1. Fluid Leakage: Symptoms include persistent low fan speed and engine overheating. Fix by replacing seals and refilling with specialized fluid (e.g., Dow Corning® PMX-200).

2. Bimetallic Sensor Failure: Fan fails to accelerate at high temps or runs continuously at low temps. Requires recalibration or replacement.

3. Fluid Degradation: Unstable torque transfer or noise. Resolve by cleaning the chamber and replacing fluid.

V. Comparison with Electromagnetic Clutches

Control Method: Silicone fluid clutches use purely mechanical temperature control, requiring no electrical circuits, whereas electromagnetic clutches depend on ECU signals and sensors.

Response Speed: Silicone clutches exhibit slower response (~20 seconds, limited by thermal conduction) compared to millisecond-level actuation in electromagnetic systems.

Reliability: The absence of electronic components gives silicone clutches superior durability (failure rate <0.2% in OEM tests), while electromagnetic variants risk coil burnout under sustained loads.

Cost: Silicone clutch systems cost 30–40% less than electromagnetic equivalents, making them dominant in ICE vehicles. Electromagnetic clutches see broader adoption in new energy vehicles (NEVs) due to precise ECU integration.

Summary

By leveraging silicone fluid viscosity changes and mechanical valve regulation, silicone fluid clutches enable adaptive engine cooling. Their reliability and cost-effectiveness keep them dominant in ICE vehicles. Future integration with electronic controls may enhance efficiency in hybrid applications.
