In automotive thermal management systems, the thermostat is a critical component that regulates coolant circulation for the engine. With advancements in automotive electronics, traditional mechanical thermostats are gradually being replaced by electronic thermostats. These two types differ significantly in their working principles, performance, and applications. Below is a comparative analysis from three perspectives: technical mechanisms, operational characteristics, and real-world use cases.

Technical Principles

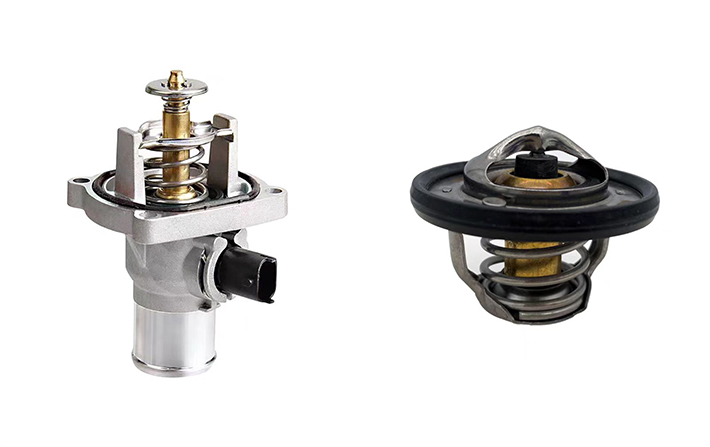

1. Traditional Thermostats: Mechanical Control via Physical Expansion.

Traditional thermostats rely on physical properties of materials, such as wax or bimetallic strips, to sense and regulate temperature:

• Wax-Based Design: A sealed chamber contains wax that expands when heated, pushing a valve open. As temperatures drop, the wax contracts, closing the valve.

• Bimetallic Strip Design: Two metals with different thermal expansion coefficients deform when heated, mechanically actuating the valve.

While purely mechanical systems require no external power, their slow response and limited precision are constrained by material properties.

2. Electronic Thermostats: Sensor-Driven Intelligent Control.

Electronic thermostats integrate temperature sensors, electronic control units (ECUs), and actuators:

• Real-Time Monitoring: Sensors collect data on coolant temperature, engine load, ambient conditions, and more.

• Dynamic ECU Decision-Making**: Algorithms calculate optimal valve positions based on real-time inputs.

• Precision Actuation**: Stepper motors or solenoid valves enable fine-tuned adjustments.

This closed-loop control system overcomes mechanical limitations, allowing adaptive logic and higher accuracy.

Performance Comparison

1.Response Speed

Traditional thermostats react slowly, often lagging by 5–10°C. Electronic thermostats respond almost instantly, with delays under 2°C, as they can anticipate temperature changes.

2.Control Precision

Traditional models have an error margin of ±3–5°C, while electronic versions achieve ±0.5°C accuracy through continuous calibration.

3.Operating Modes

Traditional thermostats operate in binary states (fully open or closed). Electronic thermostats enable stepless adjustments (0–100% valve opening), allowing gradual coolant flow regulation.

4.Energy Efficiency

Mechanical thermostats passively react to temperature shifts, often leading to overcooling or overheating. Electronic systems dynamically optimize coolant flow based on driving conditions, reducing fuel consumption by 5–8%.

5.Reliability

Traditional thermostats degrade due to mechanical wear or wax aging. Electronic variants have longer lifespans but depend on stable electrical systems.

6.Adaptability

Mechanical designs only function at fixed temperature thresholds. Electronic thermostats adapt to variables like altitude, engine load, or driving modes.

Example: In hybrid vehicles, electronic thermostats adjust coolant flow for both batteries and engines, a task impossible for traditional designs.

Application Scenarios

1.Limitations of Traditional Thermostats

While still used in pre-Euro 6 emission standard vehicles, they struggle with:

• Meeting strict Euro 6B cold-start emission requirements (which demand rapid engine warm-up).

• Compatibility with advanced technologies like turbocharging and direct injection, which require precise thermal management.

2.Advantages of Electronic Thermostats

• Electric Vehicles**: Precise cooling for batteries and motors.

• High-Performance Engines**: Preventing turbocharger overheating.

• Integrated Thermal Management**: Coordinating with electric water pumps and active grille shutters for system-wide optimization.

For instance, BMW’s B48 engine reduced cold-start emissions by 18% after adopting an electronic thermostat.

Future Trends and Challenges

Electronic thermostats now dominate over 60% of the market (2023 data), but challenges remain:

• Cost: 3–5 times more expensive than mechanical counterparts.

• Redundancy: Backup mechanical valves are needed to prevent failures in electronic systems.

• Data Integration: Cloud-based thermal strategies via vehicle connectivity could unlock further efficiency gains.

Summary

The shift from mechanical to electronic thermostats reflects a broader transition in automotive thermal management—from passive reaction to proactive control. Though traditional thermostats persist in budget vehicles due to lower costs, electronic versions are becoming indispensable in modern, efficiency-driven automotive systems. With advancements in silicon carbide semiconductors and AI algorithms, next-gen electronic thermostats may achieve millisecond-level responses, unlocking even greater potential for powertrain optimization.
