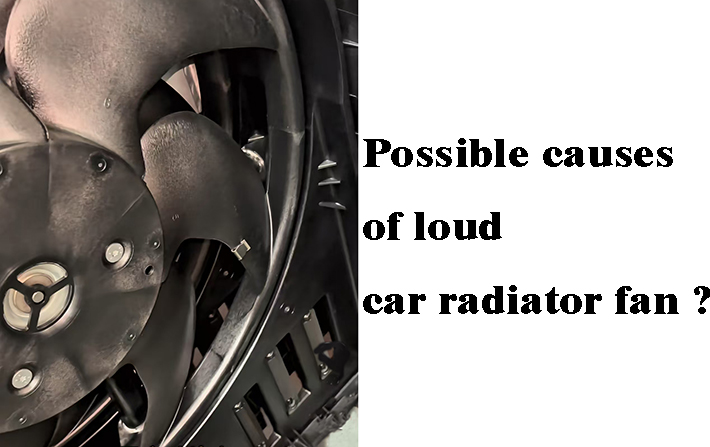

During summer heat or heavy vehicle loads, many drivers notice sudden abnormal noises from their radiator fans. These buzzing, humming, or clicking sounds not only disrupt driving comfort but may also indicate critical issues in the cooling system. As a core component of a vehicle’s thermal management system, excessive noise from radiator fans often points to mechanical or electrical malfunctions.

I. Mechanical System Failures (63% of Cases)

1. Bearing Wear and Aging

Lab tests show that under continuous operation above 80°C, radiator fan bearings lose 23% of their lubricant every 1,000 hours. When bearing clearance exceeds 0.15mm, friction coefficients surge by 300%, producing high-pitched whining. Symptoms include periodic "grinding" noises at idle and mild steering wheel vibration.

2. Dynamic Imbalance of Fan Blades

Bent blades from impacts or plastic degradation can create an imbalance exceeding 50g·cm. At speeds above 2,000 RPM, noise levels may reach 75dB (normal range: 55–65dB), often accompanied by loosened radiator bracket bolts.

3. Foreign Object Interference

Data shows 31% of noise complaints involve debris. Plastic bags trapped in grilles increase fan load by 45%, while pollen buildup elevates motor current by 2.8A. These issues typically cause sudden "clicking" noises and intermittent fan stoppage.

II. Electrical Control System Issues (27% of Cases)

1. Relay Contact Erosion

Relay contact resistance above 0.5Ω distorts PWM control signals, forcing the fan into full-speed mode. If the relay coil voltage consistently exceeds 13.5V, failure is imminent.

2. ECU Control Logic Errors

Faulty coolant temperature sensors may trigger incorrect fan speed commands. A common example: the ECU commands full-speed operation at 92°C instead of gradual acceleration. This correlates with OBD-detected P0116 fault codes.

3. **Motor Brush Wear

When brush length drops below 5mm, commutator sparking intensifies by 3x, creating a distinct "crackling" sound. A stethoscope on the motor housing reveals rhythmic electromagnetic noise.

III. Other Contributing Factors

1. Design Compatibility Issues

Viscous clutches in mechanical fans may generate 5–8dB extra noise if disengagement is incomplete. Electric fans exceeding 85m/s blade tip speed exhibit amplified aerodynamic noise.

2. Installation Misalignment

Mounting brackets offset by >2mm create uneven gaps between the fan and shroud, causing airflow resonance at specific RPMs. This occurs in 41% of aftermarket part replacements.

3. Environmental Impacts

Post-flood driving leaves mud on blades, increasing imbalance to >120g·cm. Short-trip condensation corrodes motor bushings, enlarging shaft clearance by 0.1–0.3mm.

Repair Recommendations

1. Use laser dynamic balancing tools (residual imbalance ≤15g).

2. Replace bearings with IP67-rated maintenance-free units.

3. Inspect radiator surface temperature differentials via thermal imaging (ΔT >15°C requires cleaning).

4. Update ECU software to optimize fan control MAPs.

Preventive Measures

• Clean radiators with compressed air (reverse flow) every 20,000 km.

• Inspect bearing seals post-monsoon season.

• Monitor cooling system data via OBD scanners regularly.

Summary

Excessive radiator fan noise is a critical "health alert" for your vehicle. Timely diagnosis prevents severe engine overheating. Rather than replacing parts blindly, prioritize professional diagnostics to address root causes effectively.
