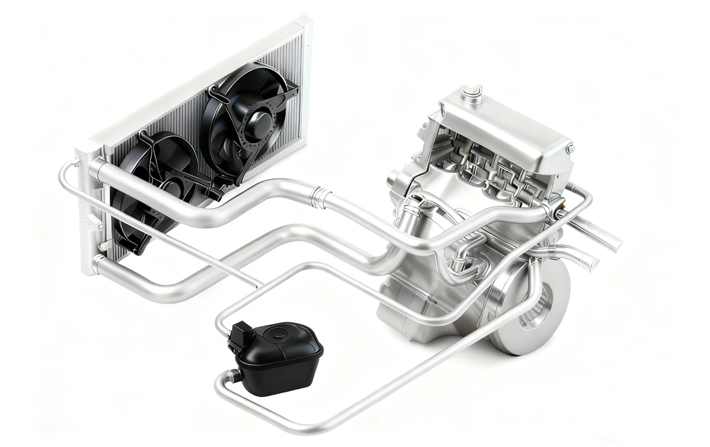

The radiator,expansion tank, and engine form a precision thermal management network in your vehicle's cooling system. The radiator dissipates heat from the coolant, the expansion tank manages coolant storage and pressure, and the engine is the core component being protected. Their synergistic operation ensures the engine operates within the ideal temperature range of 85°C–105°C. This article explores how these components work together, highlighting the critical role of the expansion tank.

I. Expansion Tank: The System's Dynamic Balancer

The expansion tank(or coolant reservoir) is a dynamic balance device with three core functions:

1. Pressure Buffering & Coolant Storage

Coolant expands when heated and flows into the tank; it contracts when cool and is drawn back into the radiator, preventing overflow or fluid loss.

2. Air-Liquid Separation & Pressure Control

The tank separates air from the coolant, preventing airlocks. Its pressure cap (typically 1.1–1.5 bar) relieves excess pressure to protect the system.

3. Level Monitoring & Replenishment

The transparent tank with MIN/MAX marks allows for easy visual inspection. A low level requires immediate attention to prevent overheating.

II. Radiator: The Core of Heat Exchange

The radiator's efficiency is vital for engine stability:

1. Structure & Workflow

Hot coolant from the engine passes through the radiator core, where a fan forces air through fins to cool it before it recirculates.

2. Synergy with the Expansion Tank

Pressure spikes push coolant/steam into the expansion tank; cooling and contraction pull it back. Frequent pressure release from the tank can indicate a radiator or fan issue.

3. Key Maintenance

Regularly clean fins of debris and inspect for leaks to maintain optimal performance and pressure balance.

III. Engine: The Temperature Control Target

The engine intelligently regulates coolant flow:

1. Cold Start Phase

The thermostat remains closed, allowing a "small circuit" for rapid warm-up.

2. Normal Operation

Above ~85°C, the thermostat opens, enabling a "large circuit" through the radiator. The pump ensures continuous flow.

3. Overheat Protection

If the system fails, the ECU can trigger high-speed fan operation, engine de-rating, or shutdown to prevent severe damage like a blown head gasket.

Summary

The expansion tank,radiator, and engine work as an integrated unit through pressure linkage, fluid feedback, and temperature control. The expansion tank ensures stable circulation, the radiator provides efficient cooling, and the engine's management optimizes the entire process. Together, they form the reliability cornerstone of the vehicle's cooling system.
